Maxxum 5120

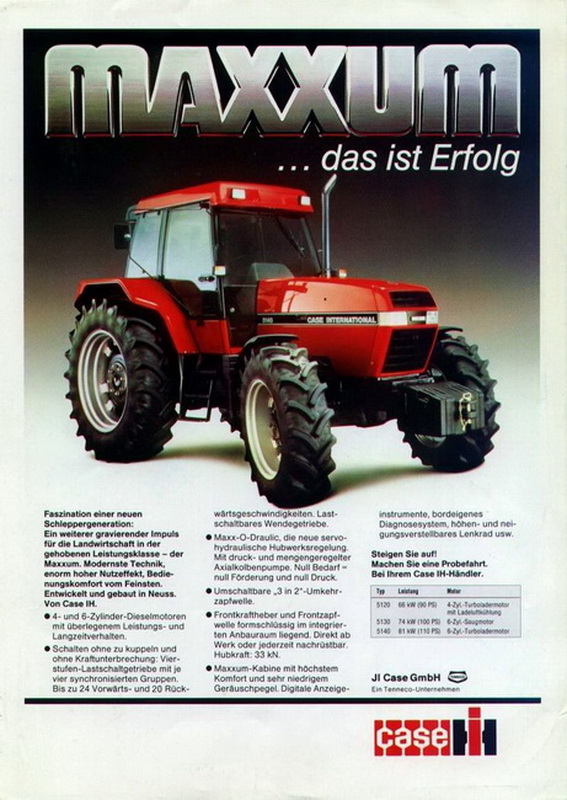

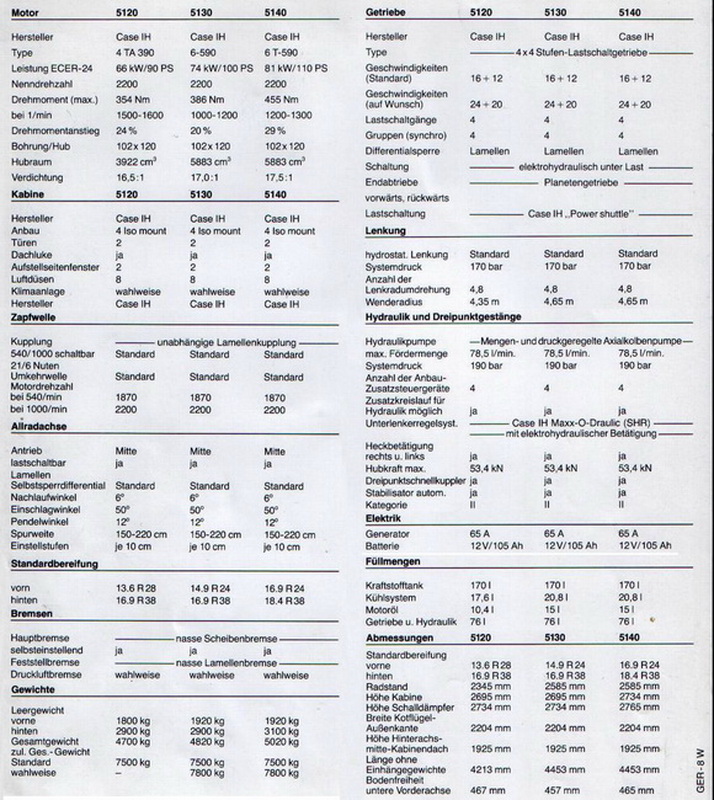

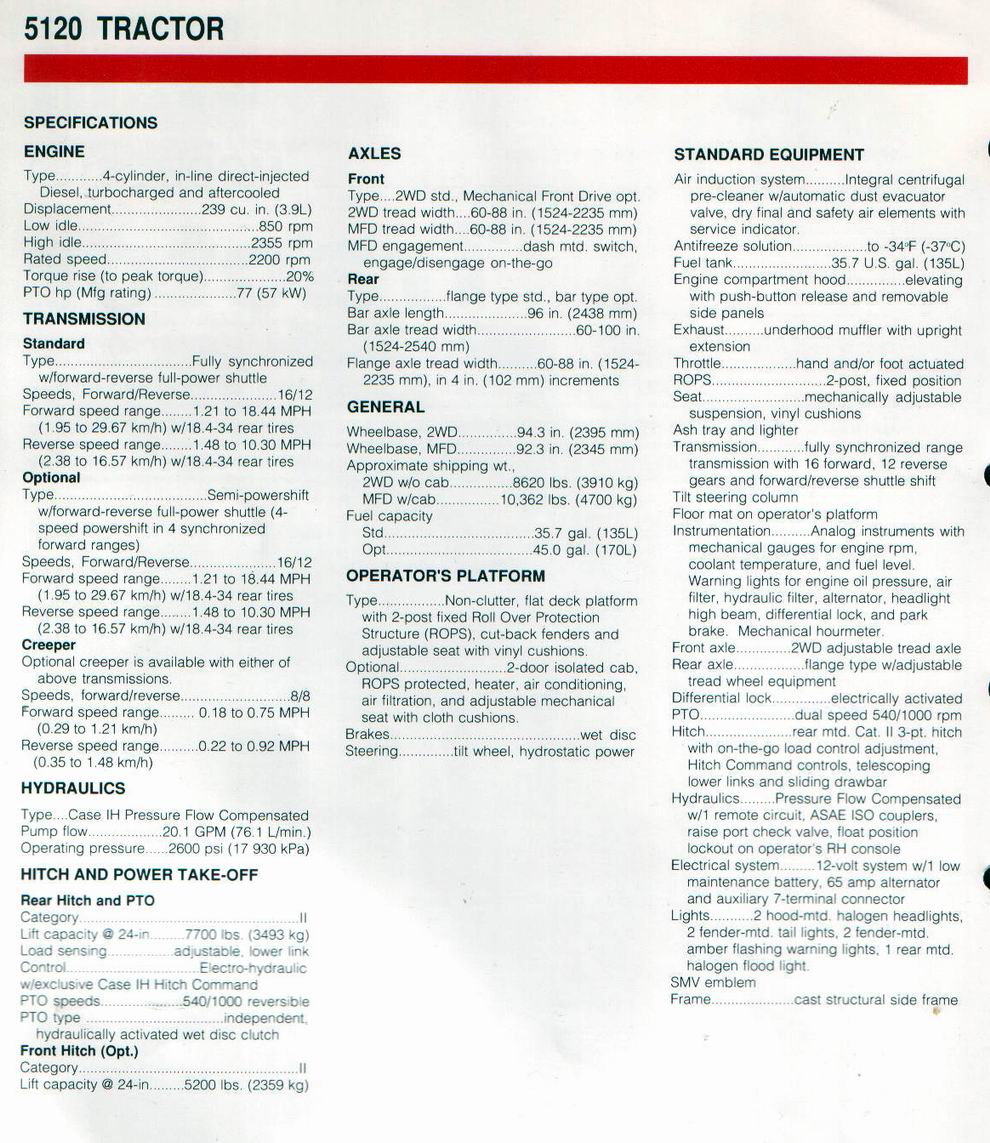

  Infotext ProspekteInfo Bilder



Bildergalerie
(Picture Gallery)


  Baujahre
(Built Years)
  1990-1997



  Stück
(Built Units)
  9046
  Motor
(Engine)
  NCE 4TA-390
  Art / Zyl.
(Type/Cylinder)
  4-Zyl.-Diesel
  Hubraum
(Displacement)
  3900 cm³
  U/min.
(rpm)
  2200 Infotext BilderInfo Bilder
  PS
(Engine-HP)
  90 / 94
  Getriebe
(Transmission)
  PowerShift 16+12 40 km/h
  Bereifung
(Tyres front/rear)
  13.6-28 / 16.9-38
  Gewicht
(Weight)
  4140 - 4700 kg
  Seriennummer
(Serial-No´s)
  * * *

  Alle Maxxum hatten den gleichen Serien-Nr.-block JJF1000001 - 1067931. Die Typenbezeichnung 52.. wurde für einige Exportmärkte eingeführt.
All Maxxum tractors were signed with the same serial-no. range from JJF1000001-1067931. The tractors of type 52.. were introduced
for export markets.
